Unitraverse Desktop Productivity Application - Version 1.4

Adding context nodes

To add a context node, either hit the 'n' keyboard shortcut, or click on 'add >> context node', (in other words, click on 'add', and then click on 'context node').

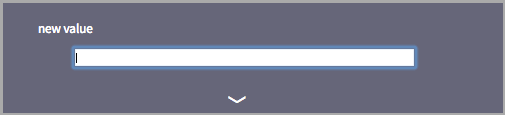

This will bring up a form popup (a.k.a. 'edit box') that allows you to type the phrase or descriptive words for your new node.

When you push 'enter' or 'return' on the keyboard, you will see the new context node that now shows up as a child inside the current scope of the main page. To exit the popup without creating a new node, just hit the 'escape' key.

After you have created a new 'context node', it will start to appear on the screen, and also the 'save' menuitem will start to have an asterisk, indicating that a change has been made to the vault. To make your changes permanent, click 'save'.

If you would like to insert the new context node in a particular location, then you will select an existing node (by clicking or using the 'ARROW' keys). Once you have done this, any added context node will be placed just before the selected node. The default placement, otherwise, will be at the very last context node position.

Adding a url resource item

To add a url resource, hit the 'u' keyboard shortcut or click on the 'add >> url' menuitem.

This will bring up a URL edit box that has two fields to fill in: 'title' and web 'address'. Fill those in and click 'OK' or 'CANCEL'. Hitting 'OK' adds the new URL resource to the list of resources in the current scope of the main page. Save your work to make this permanent in the vault. URL resources will have a blue globe icon [] next to them.

You have the option to open a browser tab immediately by pressing and holding the 'ALT' key while you add the URL. When you 'ALT+u' a browser tab opens automatically to the default URL (currently 'www.google.com'), and then you can navigate to the URL that you need. The convenient thing is that when you go back to your UD app tab in the browser, the URL is updated automatically, and then you can save the new URL resource that has been auto-updated with the URL that you landed on during your browser navigation.

Each URL resources has a push-pin to control whether your navigation inside a tab will auto-update the address and title. Auto-update happens when you return to the UD App tab. The 'pinned' URL has a stuck push pin icon like this:

For resources that you do want to have updated, you will need to set it to the 'unstuck' state, which will look like this:

One thing to be aware of is that any newly created URL that was launched using 'ALT+u' will have an unstuck setting that gets automactically stuck when you save the vault. From this point on, the push-pin control is entirely in your hands.

Adding a text resource

To add a text resource, hit the 't' keyboard shortcut or click on 'add' >> 'text doc'.

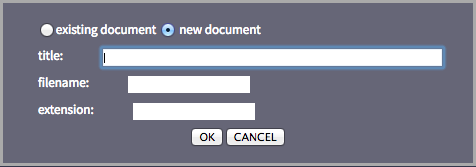

This will bring up a text info popup that looks like this:

By default the 'new document' radio button is selected, allowing you to enter the 'title', 'filename' and 'file extension'. Notice that there is no place to enter a file system path. This is because you are creating a native document and it is going to live in the UD app install directory under a vault-specific subdirectory. Click 'OK' and you will see the new document added to your resources in the current scope of the main page. Text documents have a page icon [] next to them.

Click on the 'existing document' radio button to point to a document that exists somewhere on the file system. In this case you will need to provide a full path (a.k.a. path + filename + extension) to the location of that document and a title for display inside UD app. Once the 'existing document' radio button has been clicked, a 'Browse files...' button will show, allowing you to select a file by browsing the file system.

Note that this will create a new file instantaneously on your hard drive, and it is placed in a 'res' directory, basically so you don't have to worry about such details when you are wanting to just move quickly with immediate tasks at hand.

You once again have the option to launch the text file immediately by pressing and holding the 'ALT' key when clicking the 'add' >> 'text doc' menuitem or hitting the 't' shortcut key. If you did this, then after providing the dialog information and after clicking 'OK', it will launch a text file in one of the basic text editors, either TextEdit if you're on the Mac platform, or Notepad.exe if you're on a Windows machine.

Adding files

Yes, a text document is pretty much just a file that contains text, but the UD app adds special convenience for text documents. The same conveniences are not provided with other files. We can open files, but not close them (at this point) from inside the UD app. We cannot create new vesions of these files, and they are never native to the application. For this reason we visually differenciate text file resources and resources that are not text files. Generic files will have the 'box' icon [] next to them, at least for the time being.

To add a file resource, hit the 'f' keyboard shortcut or click on 'add' >> 'file'. This will bring up a file edit popup and allow you to specify a 'path' and 'filename'. Be sure to include the file extension along with the filename, and do not include the filename or extension with the path. Click 'OK' to add the new file resource to the current scope. Click save to make that resource a permanent part of the vault.

Editing vault items

In order to edit a context node or resource item, you first must select it by clicking on it or by using the 'ARROW' keys. After selecting the item, click on 'edit', or hit the 'e' shortcut key, and then make whatever changes you need. You will be able to 'OK' and save those changes in the usual manner.

Removing vault items

To remove a context node or a resource item from the vault, select it and click on 'remove' in the main menu. To make that change permanent in the vault you click 'save' or hit the 's' shortcut key.

To remove an entire branch, or in other words, remove a context node and all of its descendant items, select the context node, and click 'remove'. To make that change permanent in the vault you click 'save' and confirm that you want to delete a node with child items.

To remove only an intervening node, the top of a branch, but not it's decendant nodes or items, hold down the 'ALT' key when you click on 'remove'. This action will delete the selected node and also move any children it might have had to the same level and position it occupied before being deleted. So, basically, with the 'ALT+remove' action, the grandparent node that loses it's child, will adopt the grandchildren as immediate children. That will also include adopting any resources that belonged to the deleted context node.
